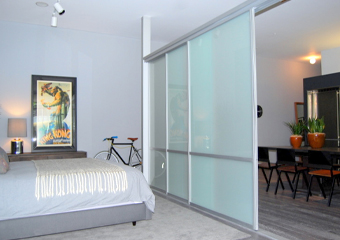

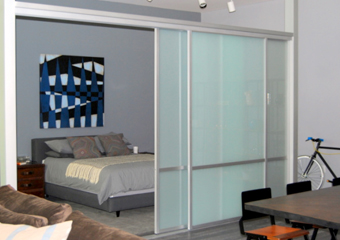

Room Divider System Features

The bottom rolling system features high end nylon rollers with a geared component for easy adjustability up to 7/8” with anti-jump protection.

The top rolling system features twin rollers consisting of rubber wheels for smooth and quiet operation.

Vertical stiles that are made of 17 gauge aluminum, 6063 or 6065 alloy and measure 1-1/2” in width and 1-5/16” in depth.

Horizontal rails are made of 17 gauge aluminum, 6063 or 6065 alloy and measure 1-5/8” in height and 1-3/8” in depth.

Top channel is made of 16 gauge aluminum, 6063 or 6065 alloy.

Bottom track is made of 10 gauge aluminum, 6063 or 6065 alloy.

Horizontal & Vertical support beams are made of 14 gauge aluminum, 6063 or 6065 alloy. Available in 2" X 4", 4" X 4" and 4" X 6".

Glass Options

Framework Finish Options

Decora Options

Tracking System

Double Tracks

Triple Tracks

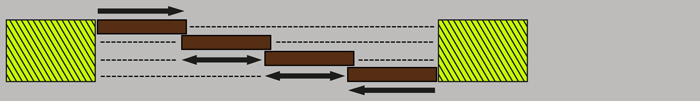

Quad Tracks

Technical Data

Glass are all monolithic and laminated products are ANSI compliant. Anti-Jump Bottom Rollers are ANSI compliant. Bottom track(s) meets ADA profile requirements and are ANSI compliant. Push/Pull Force meets ADA requirements. Push/Pull rolling performance is ANSI compliant. Hardware system can accommodate an individual door up to 175 pounds in weight. Paint to be Electrostatic Sprayed and be 1.0 –1.4 in mil thickness.

Composition & Materials

Room Dividers consist of Vertical Stiles that are made of 17 gauge aluminum, 6063 or 6065 alloy, and measure 1-1/2" in width and 1-5/16" in depth. The Horizontal Rails are made of 17 gauge aluminum, 6063 or 6065 alloy, and measure 1-5/8" in height and 1-3/16" in depth. The Top Channel is made of 16 gauge aluminum, 6063 or 6065 alloy. The Bottom Track is made of 10 gauge aluminum, 6063 or 6065 alloy. These products utilize ball bearing bottom rollers and twin top rollers This hardware system can accomodate an individual doors that does not exceed 175 pounds in weight.
